text

Creates a text box in a diagram or scene.

Syntax

• text(a, s)

  • x is a two-dimensional real vector

  • s is a string

• text(a, s[, d[, α]])

  • a is a three-dimensional real vector

  • s is a string

  • d is a three-dimensional real vector

  • α is a real number

Description

In a diagram

text(a, s) creates a text box with its top-left corner at a and with text s.

The text box is shown in the current diagram and a reference to the object is returned.

The visual properties of the object can be changed using the AdjustVisual function.

In a scene

text(a, s, d, α) creates a text box with its top-left corner at a and with text s. The normal direction of the text box is given by d and the text is rotated by an amount α about d and its top-left corner.

If omitted, d defaults to ❨0, 0, 1❩ and α to 0.

The object is shown in the current scene and a reference to the object is returned.

The AdjustVisual function can be used to adjust the appearance of the text box. See Visual settings for a list of applicable settings.

Examples

d ≔ diagram("trig");
AdjustVisual(d.view, "xmin": −2⋅π, "xmax": 2⋅π, "ymin": −1.5, "ymax": 1.5);
s ≔ LinePlot(graph(sin, −2⋅π, 2⋅π));
c ≔ LinePlot(graph(cos, −2⋅π, 2⋅π));
AdjustVisual(s, "line color": "blue");
AdjustVisual(c, "line color": "red");
st ≔ text(❨5, sin(5)❩, "sin");
ct ≔ text(❨5, cos(5)❩, "cos");
AdjustVisual(st, "text color": "blue");
AdjustVisual(ct, "text color": "red");

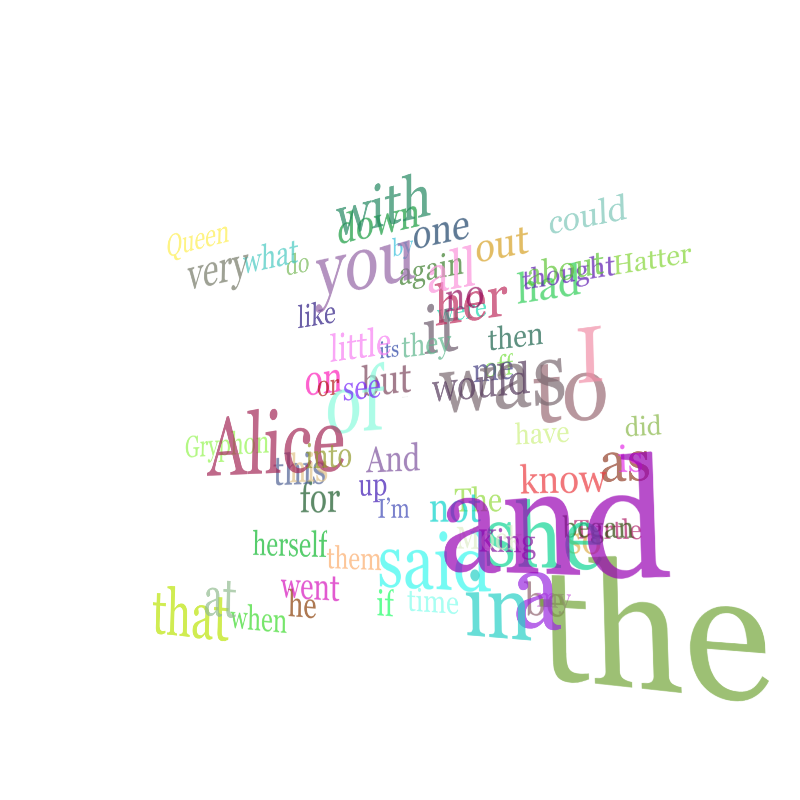

scene("text");
words ≔ first(SortBy(frequencies(words(ExampleData("Alice in Wonderland"))), (x ↦ −x[2])), 75);
ForEach(words, w,
  (
    t ≔ text(10⋅RandomSignedVector(3), w[1], ❨1, 0, 0❩);
    AdjustVisual(t, "font name": "Georgia", "font size": round(200 ⋅ √(w[2]/words[1][2])), "color": RandomColor(), "opacity": .7);
  )
);
