Algosim documentation: Identifiers panel

Identifiers panel

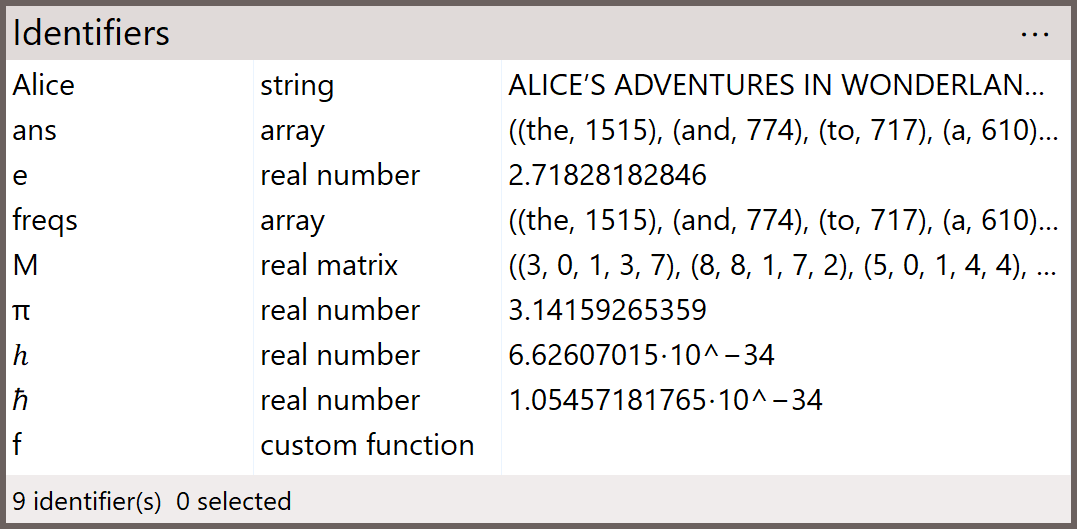

The Identifiers panel displays all identifiers currently available:

Image 1

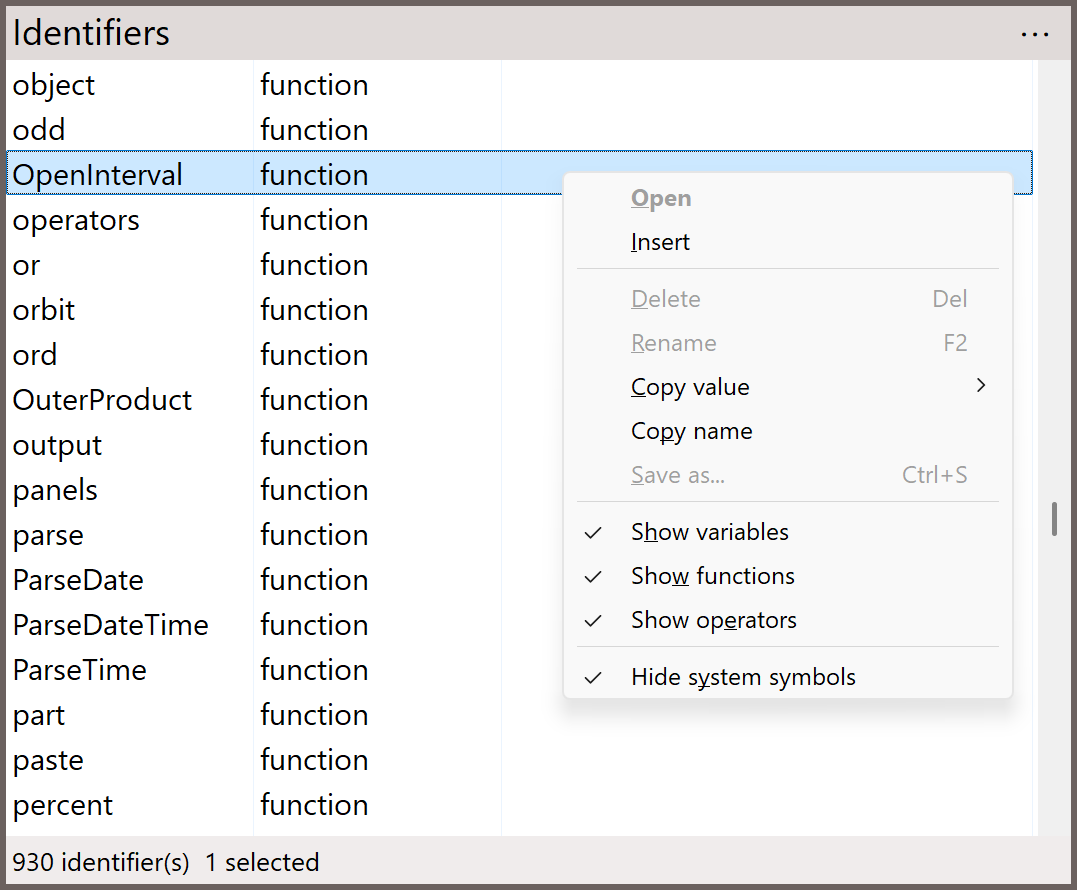

This includes variables (including constants and custom functions), system functions, and operators. By default only non-system variables are shown, but this can be changed using the context menu:

Image 2

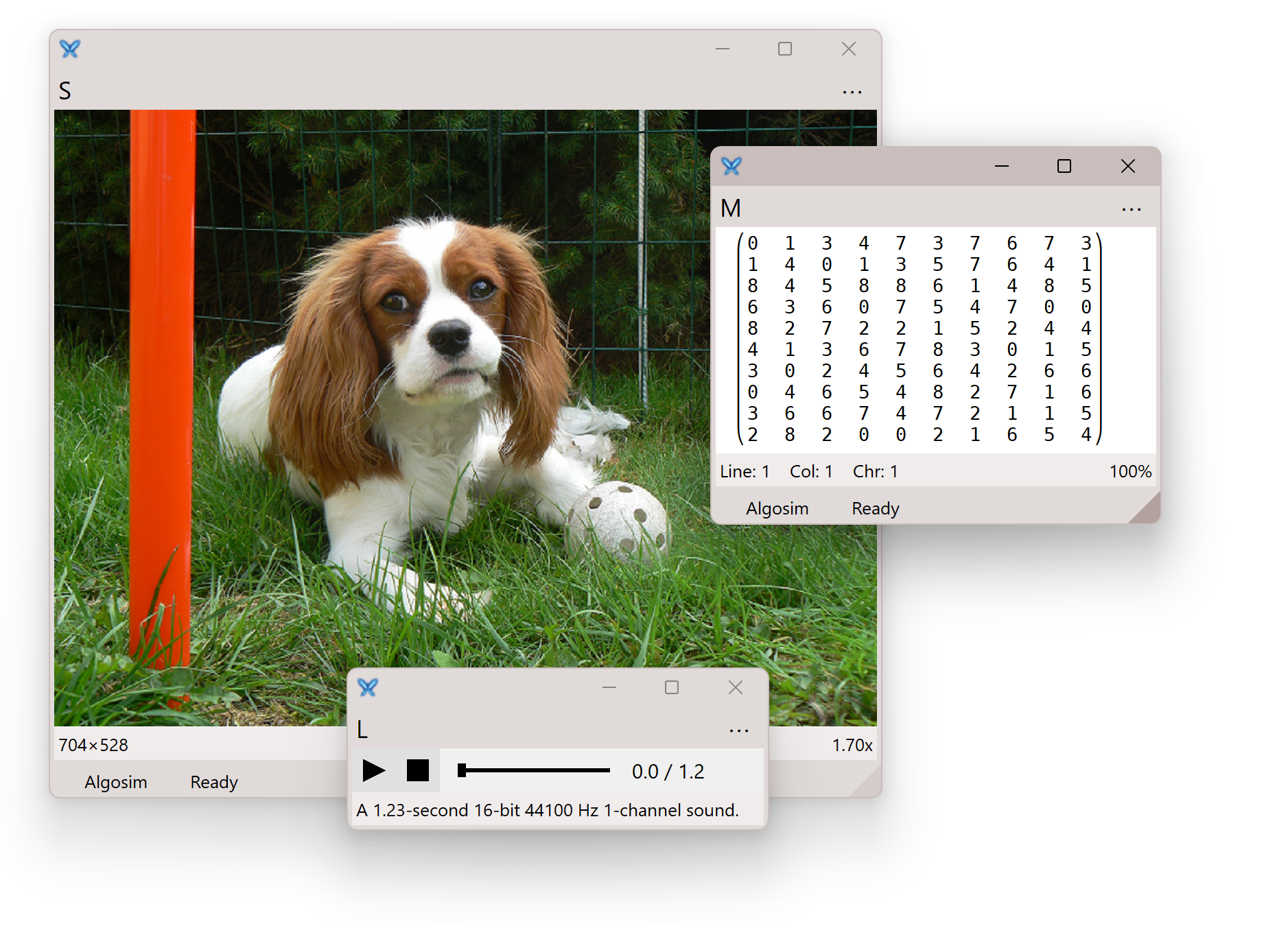

By double-clicking a variable, its value is displayed in a console window, a diagram viewer, an image viewer, or a sound player depending on the type of the variable. A custom function is displayed as its AST.

Image 3

Similarly, saving a variable will display a Save dialog of the appropriate type.

Keyboard interface

Shortcut Description
F2 Renames the selected identifier
Del Removes the selected identifier(s)
Ctrl+C Copies the value to clipboard
Ctrl+S Saves the value to file

You can select any number of variables and chose to delete these. You get a confirmation dialog box before anything is actually deleted:

Image 4
